ETIJ Control 1" 152.4
6.650,00 €
Impuestos excluidos

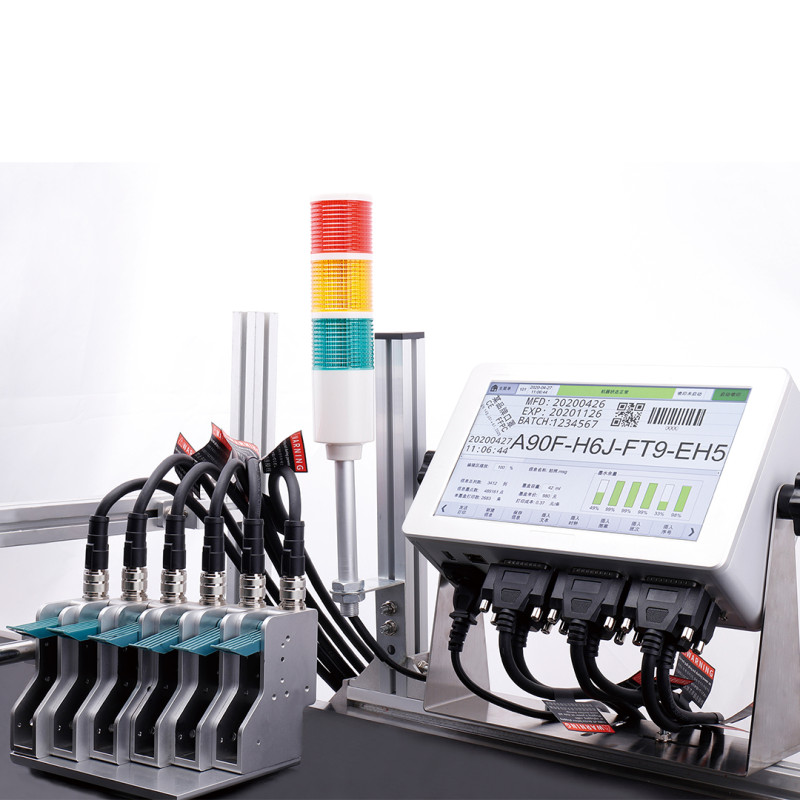

ETIJ CT1 152.4
Controlador + hasta 6 cabezales de 1"
Printing Parameters
Print Resolution:
Up to 300x300 DPI
Number of Print Heads:
1/2/3/4/5/6 options
Print Height:
1-152.4mm
Print Speed:
Up to 120 m/min
Cartridge Chip:
RFID non-contact chip, automatically identifies ink parameters and records ink remaining amount
Ink Color:
Black, white, red, yellow, blue, green, invisible, UV
Ink Type:
42ml food grade, water-based, oil-based, weak solvent, solvent ink cartridge, large capacity ink continuous ink supply system
Printing Content:
Multi-language, GS1 code, dynamic trace-ability QR codes, barcodes, graphics, serial numbers, dates, shifts, counters, variable databases, etc.
Printing Material:
Cartons, plastics, metals, plates, pipes, stones, wires & cables, electronic components, auto parts, industrial chemical packaging, pharmaceutical and food, gift packaging
Machine Parameters
Operating System:
Embedded Linux operating system
Data Interface:
Optical sensor, encoder, alarm control output, printhead connection port, printing information selection
Printhead Installation:
Separate printhead installation, various splicing combinations
Power:
110-230 Volts AC, 50-60Hz input
Machine Material:
Industrial grade standard protective body (aerospace grade aluminum, industrial grade stainless steel)
Working Environment:
Temperature 0-45°C / Humidity 30-70% Rh
Main Hardware:
American TIAM3358 industrial grade CPU, USA Xilinx Spant6 industrial grade FPGA, TIJ dedicated ASIC chip
Machine Specifications:
Controller: 274×165.4×88 mm; 6 Printhead: 168×113×163 mm
Support language:
Supports more than 40 national and regional languages (Chinese/English/Arabic/Russian/French/Vietnamese/Korean, etc.)
